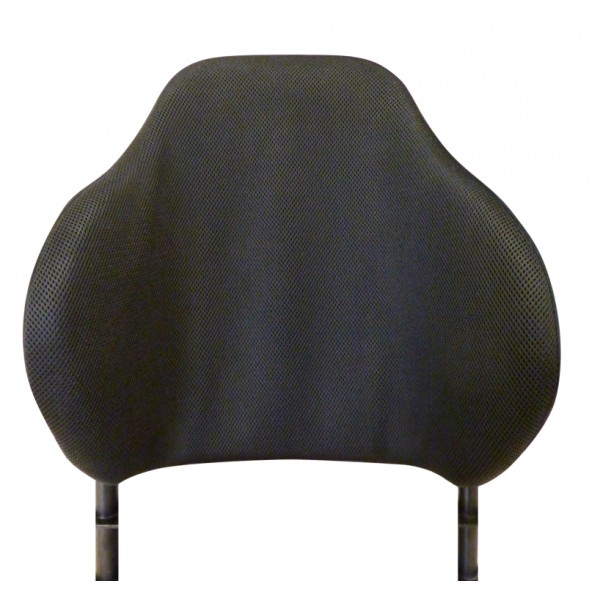

Nxt Plus Contour Back

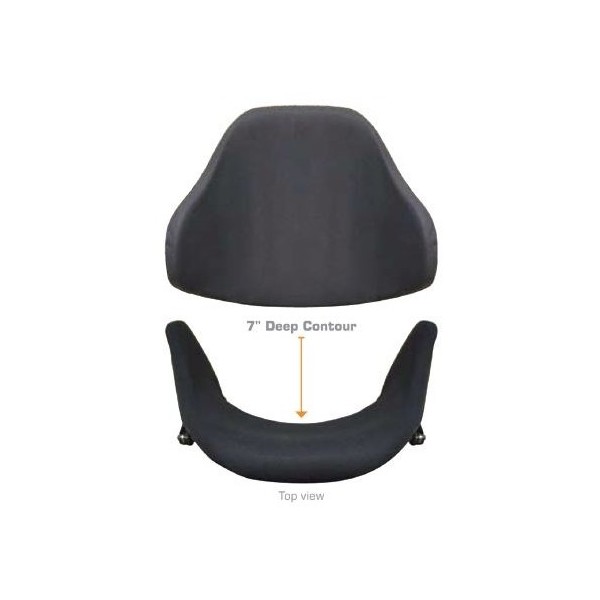

The Plus Contour Back nxt Seating Series is a back support with a deep 7"(17.8cm) contour. Provides optimal midline support and positioning with extra lateral support for users who need mid to upper thoracic or shoulder height support and posterior lateral support.


**DISCONTINUED: This range only has limited sizes available. Please contact us regarding sizing.**



POA

Plus Contour Back - Features and Benefits

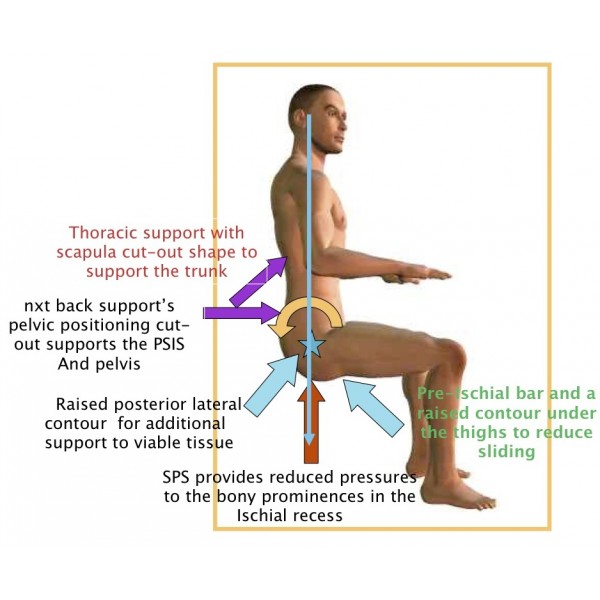

The nxt Seating Series provides a range of back support models, shapes and contours to provide posterior, posterior lateral and posterior deep lateral support. The scapular cut out shape is designed to provide excellent support and comfort while enhancing the users natural range of motion. For optimal positioning of the pelvis, pelvic support pads can be uniquely positioned to customise the fit for the user. The wide range of sizes and contours provides exceptional choice for support and comfort.



Outer cover:

Breathable, moisture resistant washable spacer fabric with 'Silverplus' antimicrobial protection



Features:

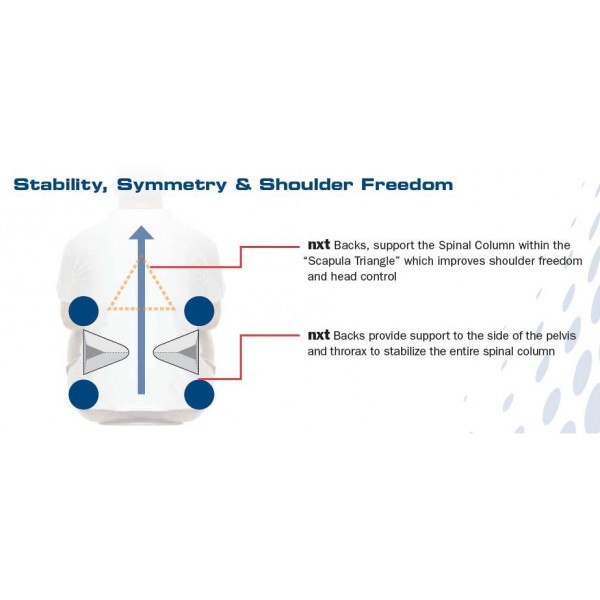

  • Supports the spinal column within the 'scapula triangle' which improves shoulder freedom and head control
  • Supports the side of the pelvic and thorax to stabilise the entire spinal column
  • Adjustable lateral support pads provide extra support - simply bend to adjust position
  • Adjustable pelvic lumbar supports for optimal positioning and low pelvic pivot point which can be pivoted around the pelvis


Foam pads:

  • Includes two foam lumbar supports
  • Lateral support pads available by request

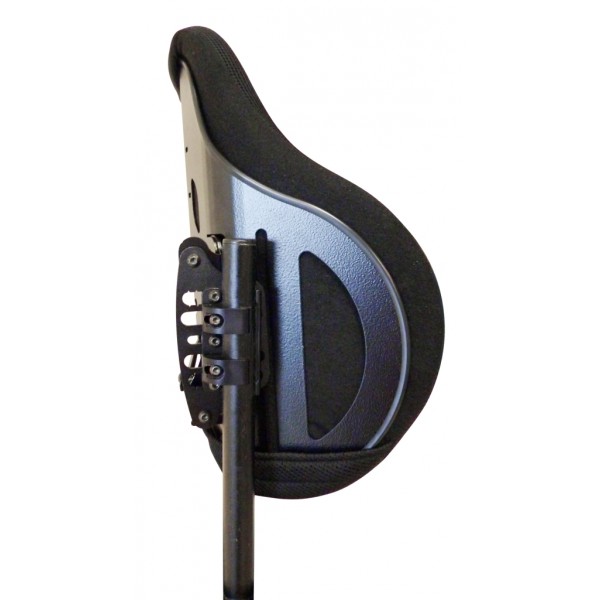

Hardware:

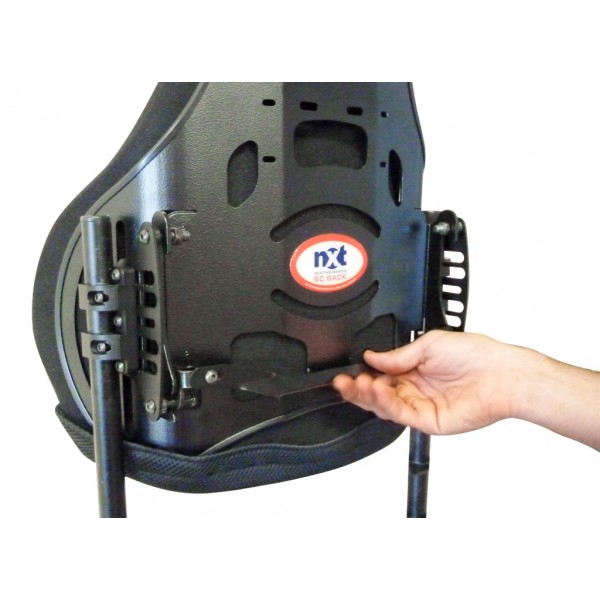

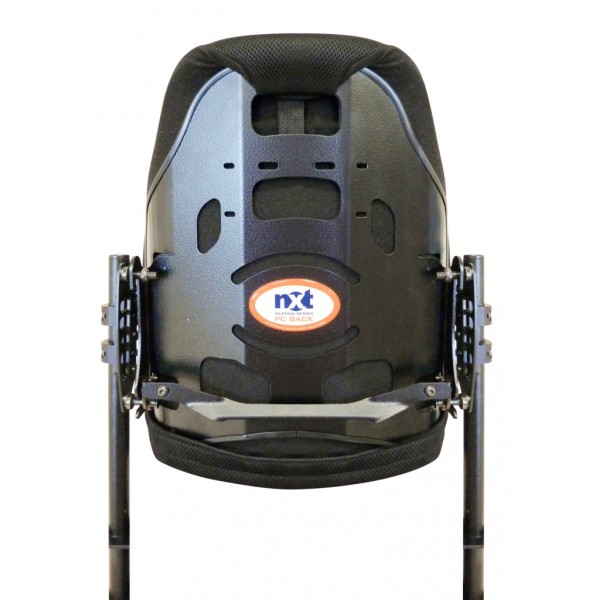

  • Quickfit Mounting Hardware - quick and easy to adjust while client is in the chair

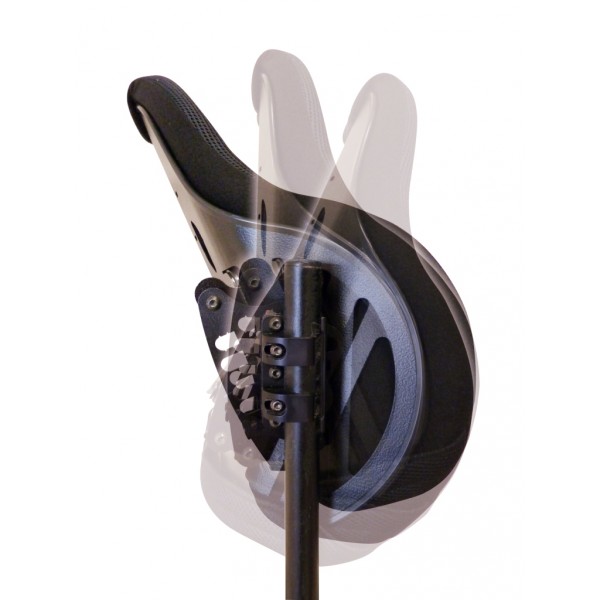

  • 50 degrees of angle adjustment
  • 5” of depth adjustment: 2.5” in front and 2.5” behind back canes.
  • Fits metric and imperial tubing including, 1"-2.5cm, 7/8"-2.2cm or 3/4"-1.9cm back canes without shims
  • Clamps open wide for installation/removal without taking them apart.
  • Quickfit Multi-clamp allows clamp to be installed where a smaller tube is inserted into a larger tube,  ie. 3/4" (1.9cm) inside 1" (2.5cm)
  • Fits 3 widths of chair by adjusting the mounting pins (ie. 16" back fits 16", 17" & 18" chairs)
  • Provides rotation adjustment for pelvic or trunk rotation.

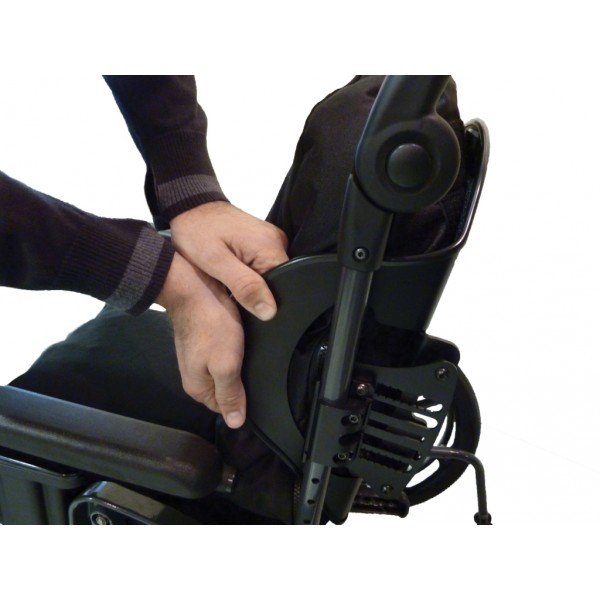

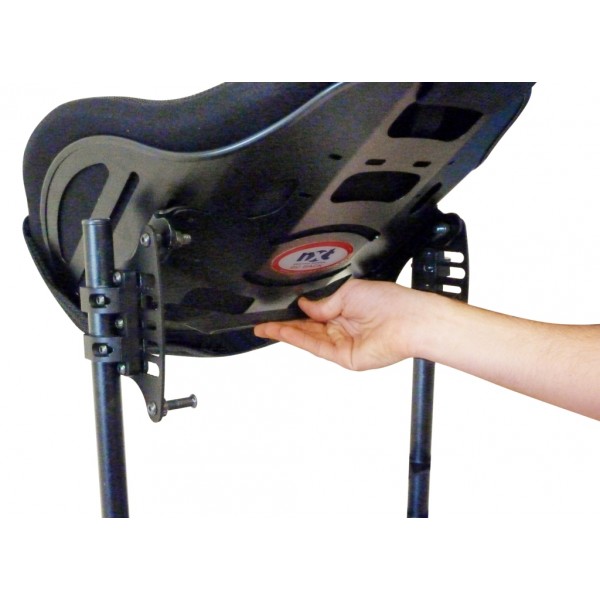

  • One hand quick release for easy removal to fold chair or transport.



Weight Limit:

136kg / 300lbs



Height:

  • 300mm / 12" (short)
  • 400mm / 16" (regular)
  • 500mm / 20" (tall)


Product weight:

2.7kg (based on a  complete 16x16)


Product code:

NPCB#### (width x depth)

Eg, Plus Contour Back 16x20 = NPCB1620



Full dimensions and sizing information available under Download

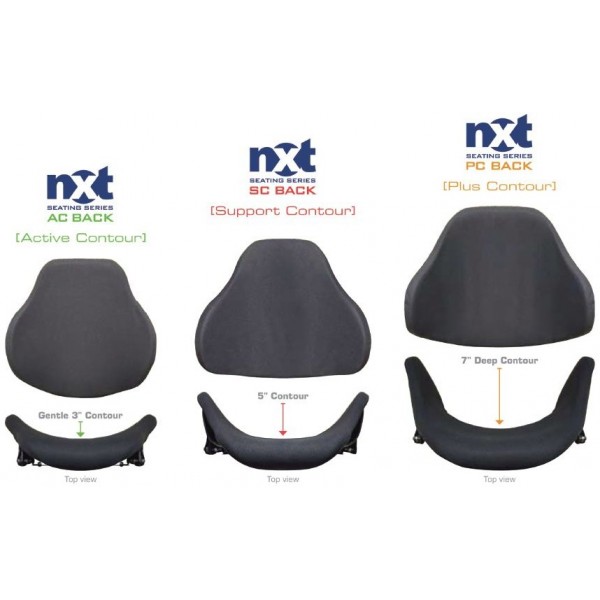

Also in nxt Seating Series:

Active Contour Back (3" contour)

Support Contour Back (5" contour)

  • Available in 16x12, 16x16, 16x20, 18x12, 18x16, 18x20, 20x16, 20x20
