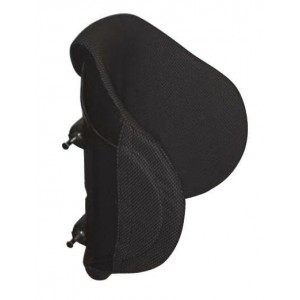

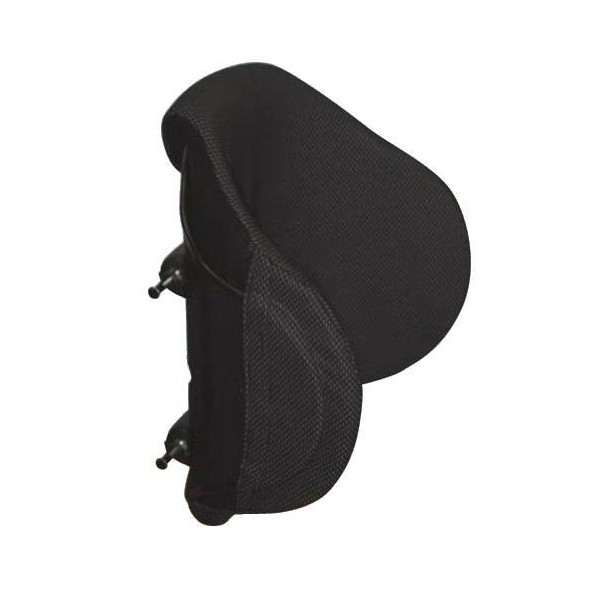

Matrx Elite Deep Back

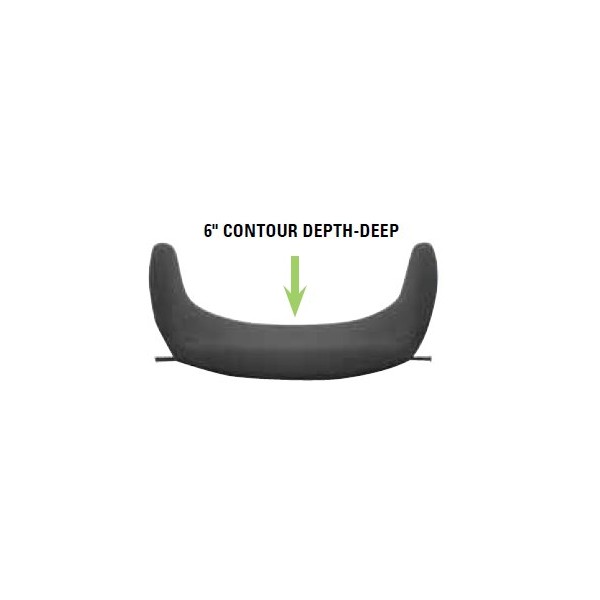

The Matrx Elite Deep Back by Motion Concepts has a contour depth of 6" and was designed to provide precise orientation within a wheelchair for optimal postural support. The attractive, lightweight design appeals to users with active lifestyles.

Available in 14" to 20" widths

Fits wheelchairs 13" to 21" wide

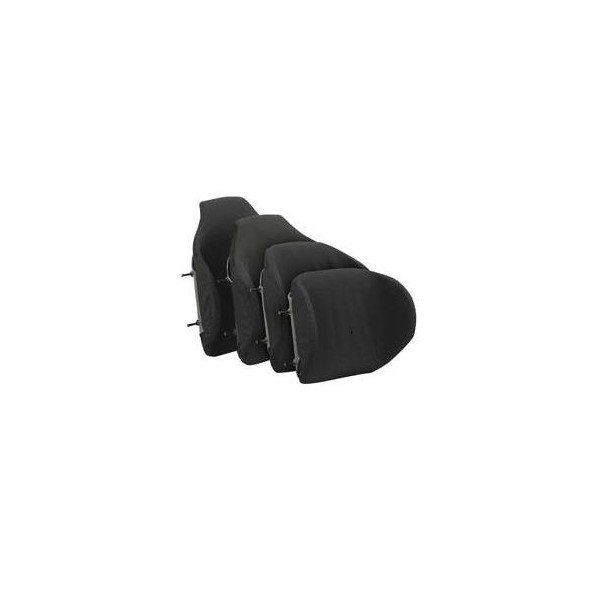

Height options 12", 16", 18" (20" for purchase only)


Matrx Elite Deep Back - Features and Benefits

Outer Cover:

• Oversized cover/foam for extra comfort and protection

• Moisture resistant and breathable cover


• Moulded foam wraps around shell for maximum comfort and protection

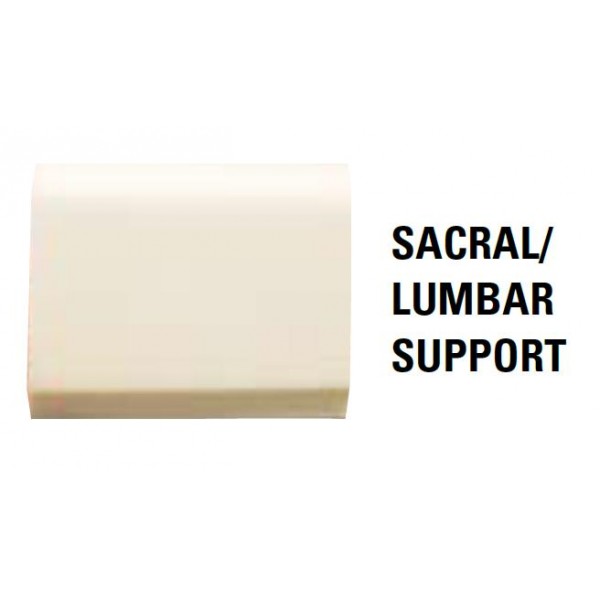

Sacral / Lumbar Support:

• Removable foam positioning pad


Back Shell:

• Stylish and breathable back shell

• Lightweight - most models weigh under 1.5kgs / 3lbs



Includes standard Posture Back Mounting Hardware, tools and accessories

"Easy set" hardware installed and adjusted in minutes - adjustments can be made while user is seated in a wheelchair

Quick release for easy portability

Infinite adjustment of depth (4"), angle (40°) and rotation

Fits ¾", 7/8" and 1" diameter back canes

Adjusts to fit chairs 1" narrower to 1" wider

Weight limit:

135kgs / 300lbs


• 300mm / 12"

• 400mm / 16"

• 450mm / 18"

• 500mm / 20" (purchase only)

Product code:

EDB#### (width x depth)

Eg, Matrx Elite Deep Back 18x16 = EDB1816

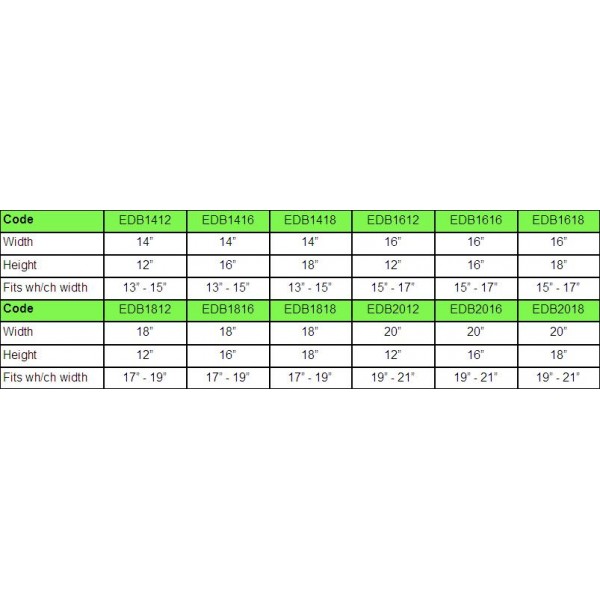

Full dimensions and sizing information available under Download


Also in Matrx Elite Back series:

Elite Deep Back Paediatric (6" contour)

Elite Back (3" contour)

Elite Back Paediatric (3" contour)

  • Available in 20" height for purchase only
  • Paediatric available in 14x12, 14x16, 14x18
  • Standard available in 16x12, 16x16, 16x18, 18x12, 18x16, 18x18, 20x12, 20x16, 20x18
