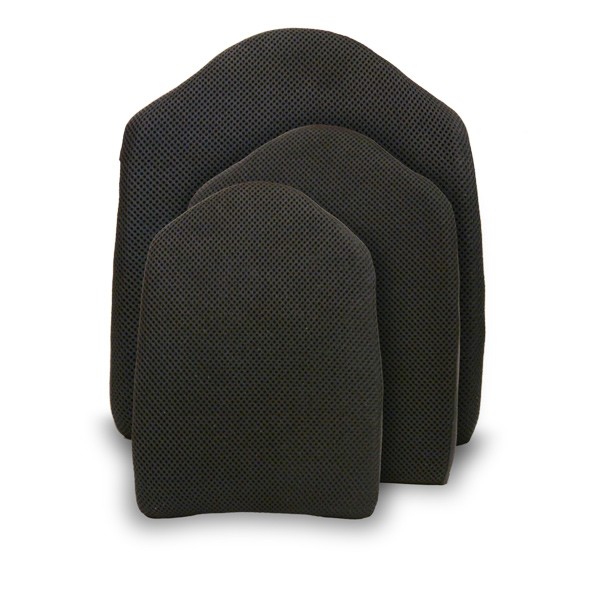

Nxt Kids Contour Back

The Kids Contour Back nxt Seating Series is a height adjustable paediatric back support. Features a subtle 1" (2.54cm) contour, and grows with the child by increasing in height to accommodate growing bodies, without sacrificing pelvic support.


**DISCONTINUED: This range only has limited sizes available. Please contact us regarding sizing.**



POA

Kids Contour Back - Features and Benefits

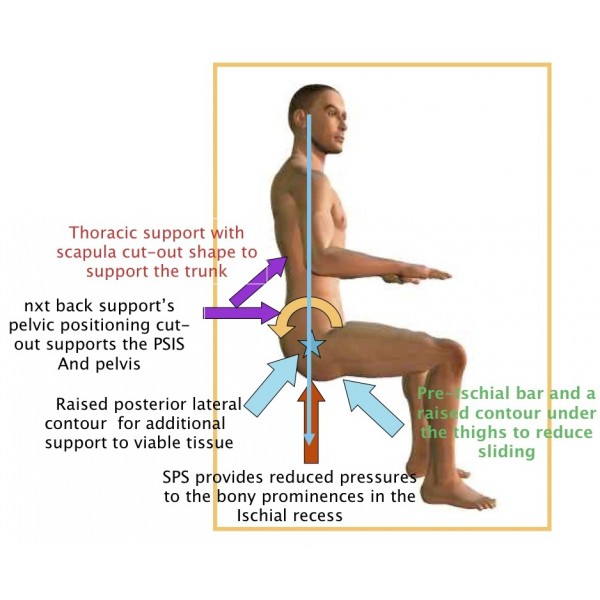

The nxt Seating Series provides a range of back support models, shapes and contours to provide posterior, posterior lateral and posterior deep lateral support. The scapular cut out shape is designed to provide excellent support and comfort while enhancing the users natural range of motion. For optimal positioning of the pelvis, pelvic support pads can be uniquely positioned to customise the fit for the user. The wide range of sizes and contours provides exceptional choice for support and comfort.



Outer cover:

• Breathable, moisture resistant washable spacer fabric with 'Silverplus' antimicrobial protection



Features:

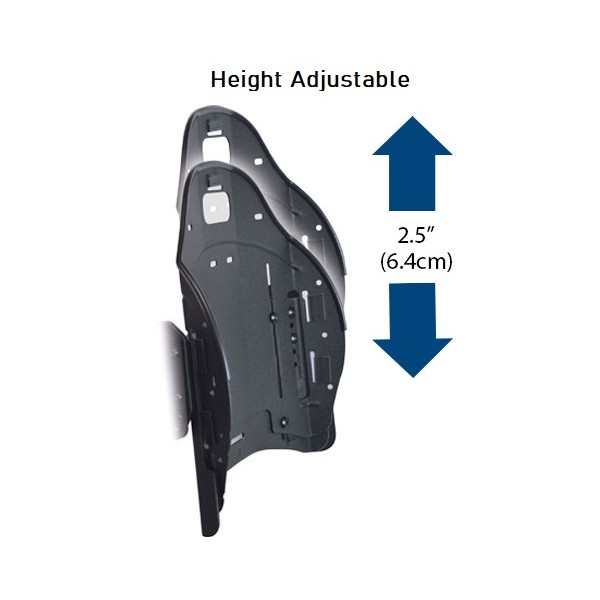

• The height can be easily and steplessly adjusted with infinite heights between 8" and 12.5"' (varies):

- 10" model: 8-10.5" / 20-27cm

- 12" model: 9-11.5" / 23-29cm

- 14" model: 10-12.5" / 25-32cm

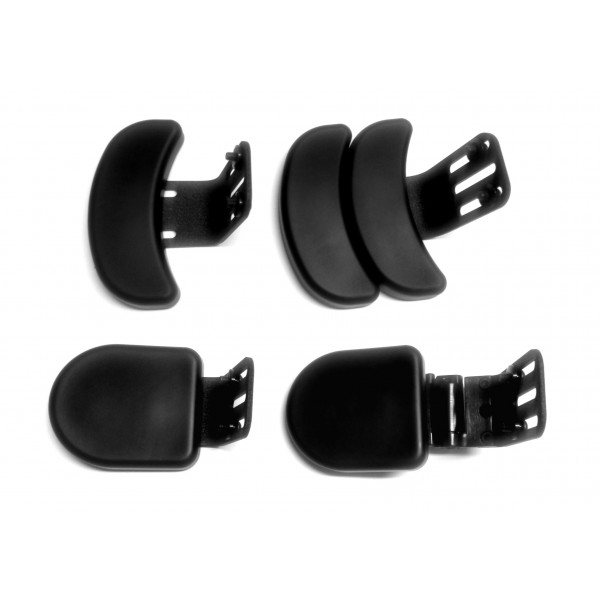

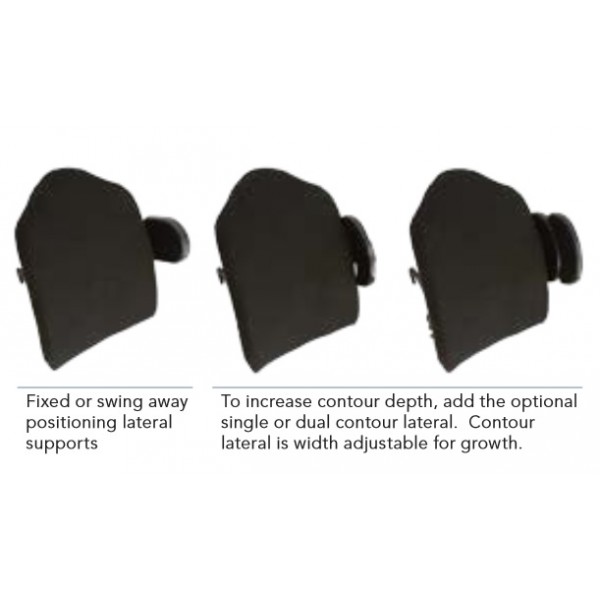

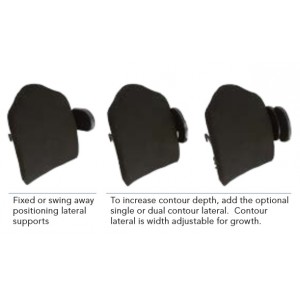

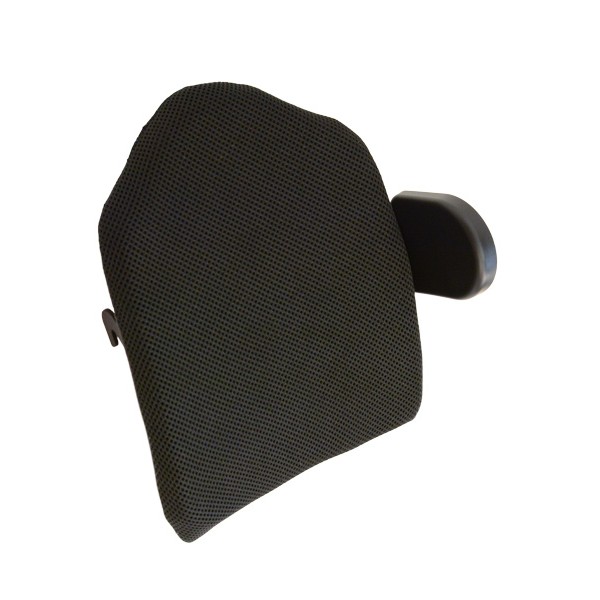

• Optional swing away, contoured or fixed positioning lateral supports available

Headrests with hardware also available


Hardware:

• Quickfit Mounting Hardware - quick and easy to adjust while client is in the chair

• 50 degrees of angle adjustment

• 5” of depth adjustment: 2.5” in front and 2.5” behind back canes.

• Fits metric and imperial tubing including, 1"-2.5cm, 7/8"-2.2cm or 3/4"-1.9cm back canes without shims

• Clamps open wide for installation/removal without taking them apart.

• Quickfit Multi-clamp allows clamp to be installed where a smaller tube is inserted into a larger tube (ie. 3/4"-1.9cm inside 1"-2.5cm)

• Fits 3 widths of chair by adjusting the mounting pins

• Provides rotation adjustment for pelvic or trunk rotation.

• One hand quick release for easy removal to fold chair or transport.


Weight limit:

136kg / 300lbs


Product weight:

• 10" complete: 1.5kg

• 12" complete: 1.6kg

• 14" complete: 1.8kg



Product code:

NHAKCB10/8-10.5

NHAKCB12/9-11.5

NHAKCB14/10-12.5



Also in nxt Seating Series:

• HA Active Contour Back (3" contour)

• HA Support Contour Back (5" contour)

• HA Plus Contour Back (7" contour)



Dynamic Health Care Solutions products are exclusive to C1 South in New Zealand

  • Available in 10", 12", 14"
