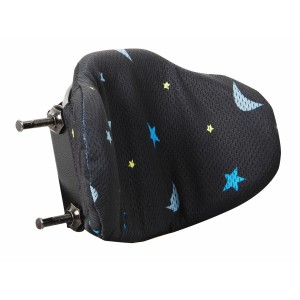

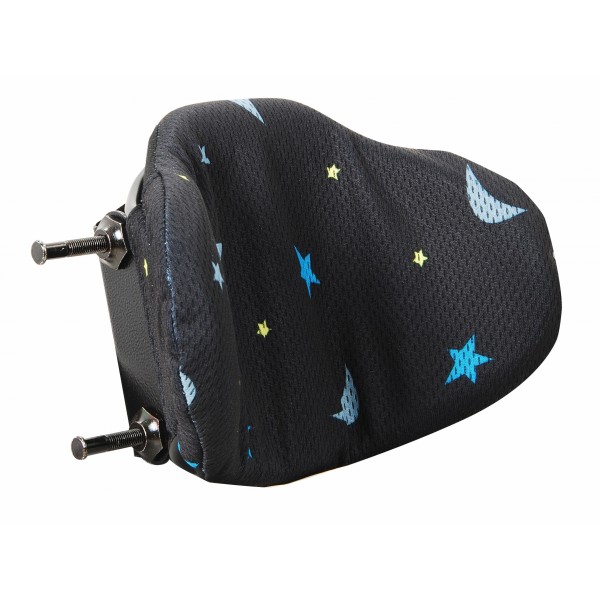

Matrx Mini Back

The Matrx Mini Back by Motion Concepts has a contour depth of 3" and is contoured to fit kids of all shapes and sizes - combining exceptional support in an appealing low profile package. Features Mini Set hardware, a miniature version of the standard Easy Set hardware.


Available in 10" to 14"

Fits 10" to 15" wheelchairs



POA

Mini Back - Features and Benefits


Options:

Fixed Laterals for Matrx Mini Back  Swing-Away Laterals for Matrx Mini Back  miniFlex Abdominal Support band

  • Sacral / Lumbar Support - provided as standard

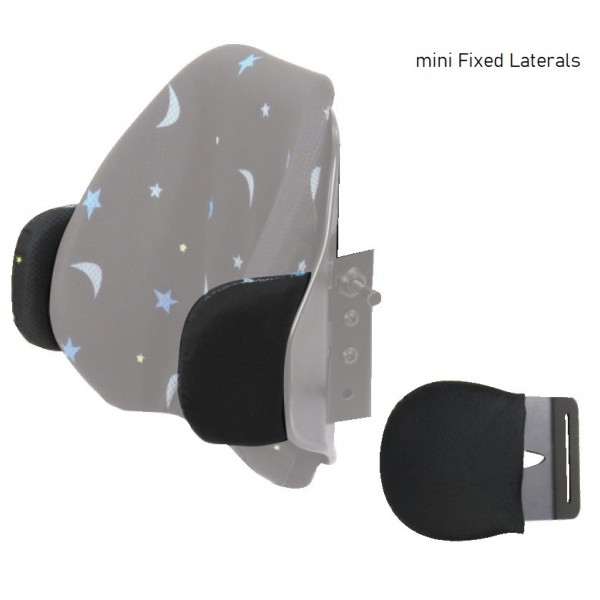

  • Fixed lateral supports

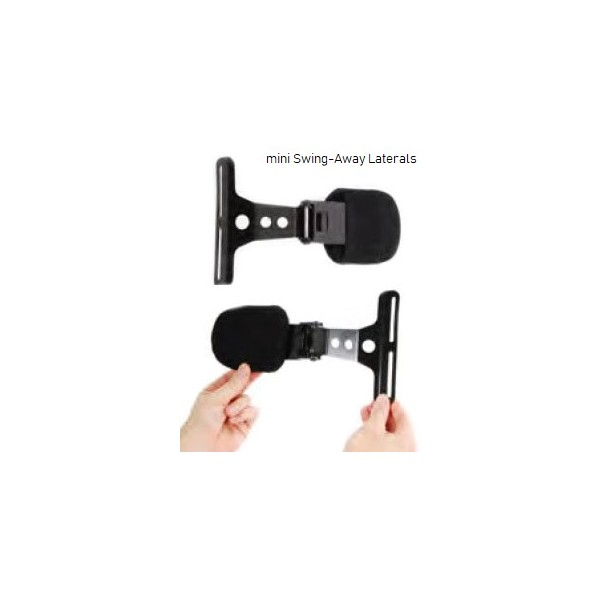

  • Swing-Away lateral supports. 2.5" of vertical adjustment. Mounts inside basic shell, easy push button release.

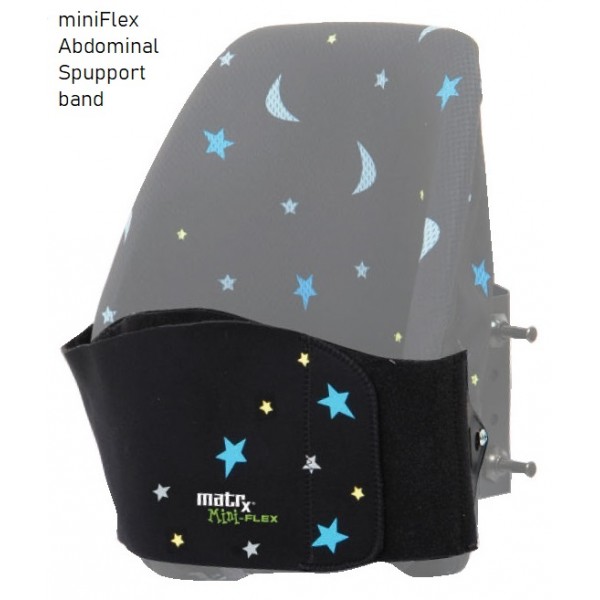

  • Mini flex abdominal support band



Back Shell:

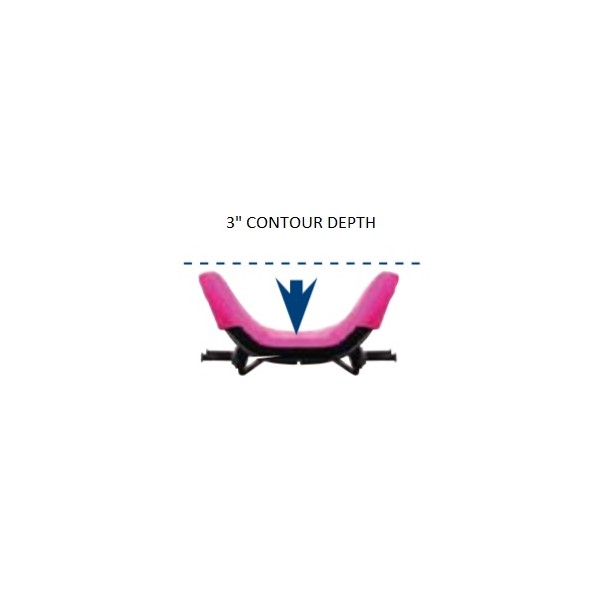

  • 3" contoured shell provides exceptional support and positioning
  • Lightweight, durable aluminium shell, designed for easy attachment of optional lateral supports and headrest
  • Includes headrest adapter for easy, durable and safe mounting of headrest hardware



Outer Cover:

  • Moisture resistant and breathable
  • Standard Kidabra print
  • Pink or blue cover available by special request



Foam:

Moulded foam wraps around shell for maximum comfort and protection

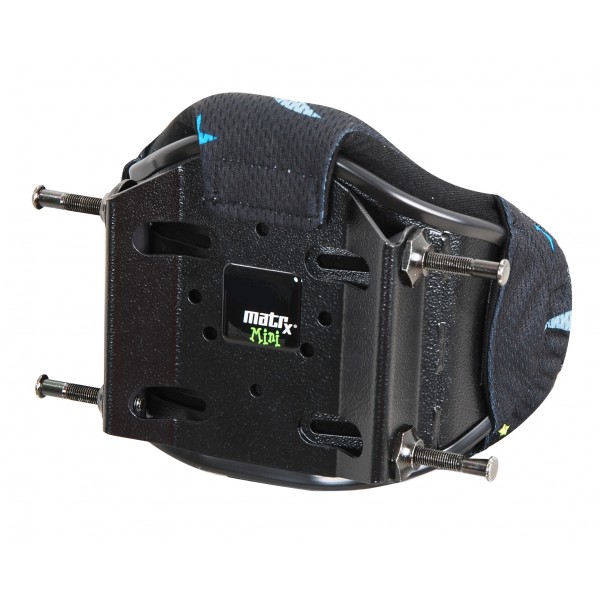

Hardware:

  • Includes Mini Set Hardware - a miniature version of the standard Posture Back Mounting Hardware, tools and accessories
  • Mini Set hardware installed and adjusted in minutes - adjustments can be made while user is seated in a wheelchair
  • Quick release for easy portability
  • Adjustment of depth (4"), angle (40° range with +/- 20°) and rotation
  • Fits ¾", 7/8" and 1" diameter back canes
  • Adjusts to fit chairs 1" wider


mini EXT hardware:

MiniEXT Hardware for Matrx Mini Back

Provides pin mounting location +/- 3.5" for clearance of obsticles on back canes.


Weight limit:

68kgs / 150lbs


Standard heights available:

  • 177mm / 7"
  • 254mm / 10"
  • Note:  12" and 14" heights available for purchase


Product weight:

From 0.590kg / 1.3lb


Product code:

MINI#### (width x depth)

Eg, Mini Back 10x7 = MINI1007


Full dimensions and sizing information available under Download
